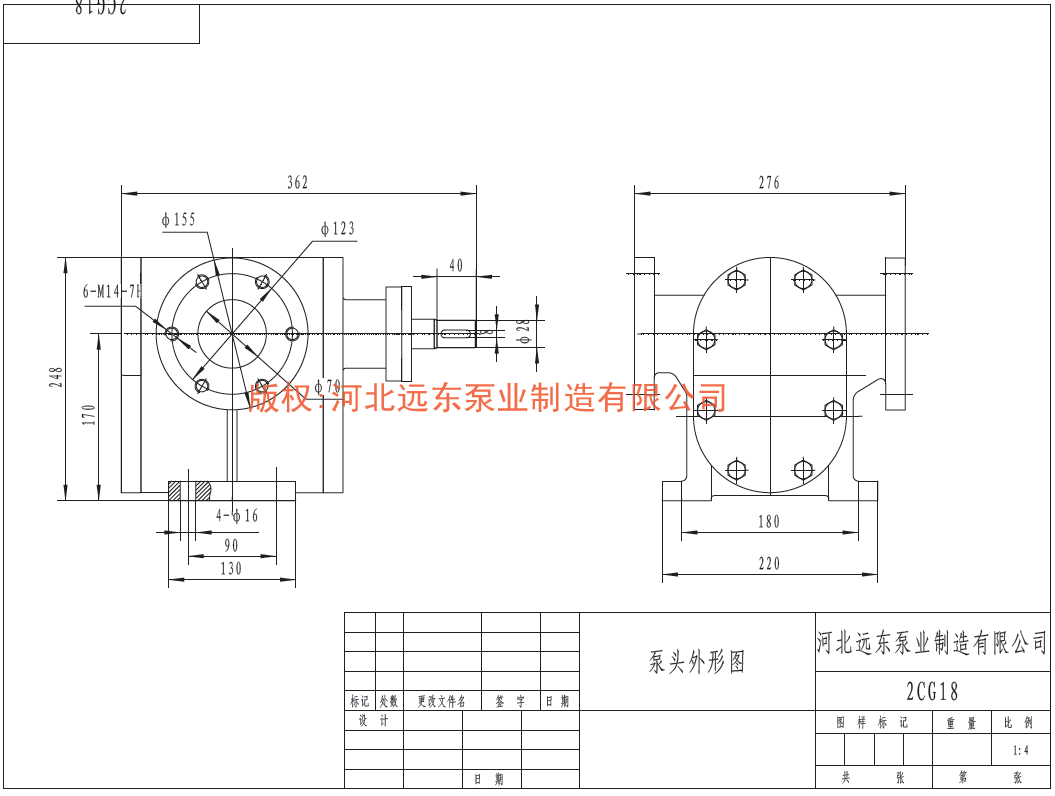

渣油輸送泵2CG18硬齒面齒輪泵泵頭尺寸圖,該泵流量18m3/h,壓力1.0Mpa,口徑70,配用電機功率為7.5kw

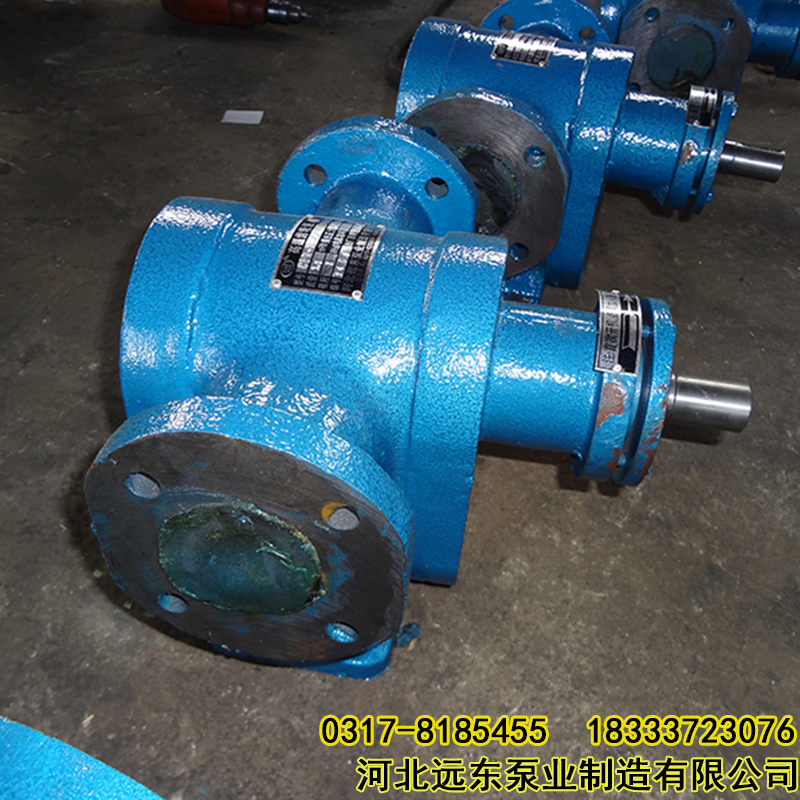

2CG18渣油輸送泵產品圖片:

●2CG渣油泵用途2 CG low residue oil pump USES

　　用于渣油、煤焦油、落地油、泡沫原料及添加劑等介質的輸送、加壓、是玻璃、泡沫、建材、化工建筑、石油、糧油行業理想的輸送加壓設備。Used for residual oil,  foam raw materials and additives, such as the medium of conveying, pressure, is glass, foam, building materials, chemical construction, petroleum, grain and oil industry ideal conveying pressure equipment.

● 2CG渣油泵應用范圍2CG slag pump application range

   主要用于輸送各種潤滑性差、含有細微顆粒的介質、溫度不超過200℃，粘度不大于1500cst。Mainly used for conveying various poor lubricity, medium containing fine particulates, temperature does not exceed 200 ℃, the viscosity is not more than 1500 CST.

● 2CG渣油泵結構特點2CG low residue oil pump structure characteristics

   1、主要由泵體、泵蓋、齒輪、軸、軸承、及密封等部件構成。1, mainly composed of pump body, pump cover, gear, shaft, bearing and seal components.

   2、三體為鑄鐵件、鑄鋼件；齒輪、軸采用特殊鋼材，其表面硬度可達到HRC60以上，具有極強的耐磨性。2, three body is cast iron pieces, steel;Gear, shaft, the use of special steel, the surface hardness can reach above HRC60, with strong wear resistance.

    渣油泵是裂解燃料油氣提塔的塔底外送泵，它將經柴油組分混合的渣油液輸送到成品罐區。該泵在實際運行中，頻繁發生泄漏，機械密封在安裝運行一周左右開始微漏，1～2個月內泄漏量增大，無法繼續使用。嚴重影響了裝置的環保達標和長期穩定運行。

遠東泵業銷售業績:

渣油輸送泵產品特點
